LED Submersible Over 80" Wide Trailer Light Kit.
Kit for Trailers Over 80" and Submersible.
**Kit does not include the center rear red ID bar / lights required on over 80" trailers.**

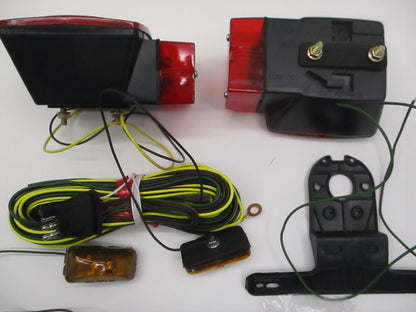

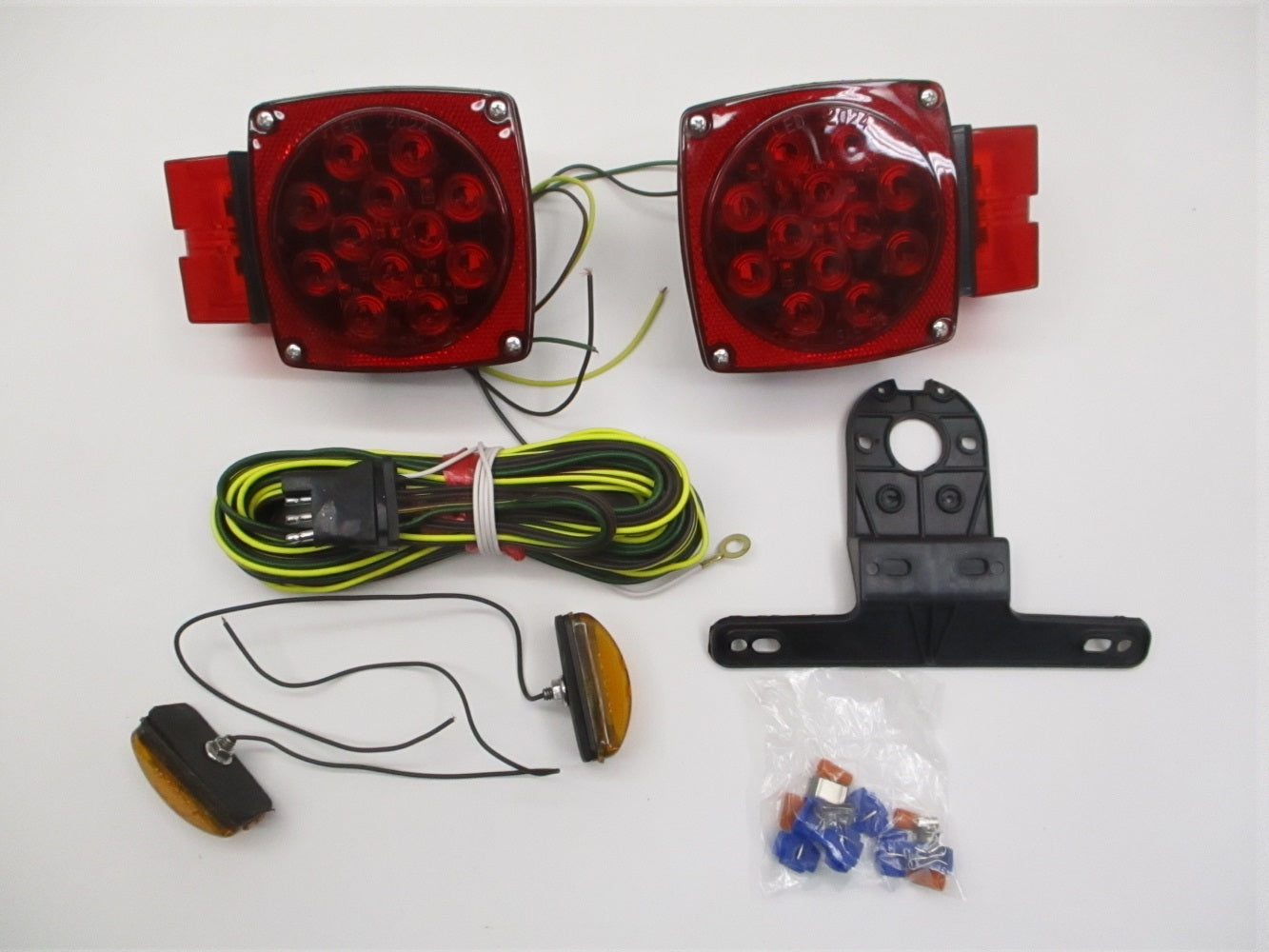

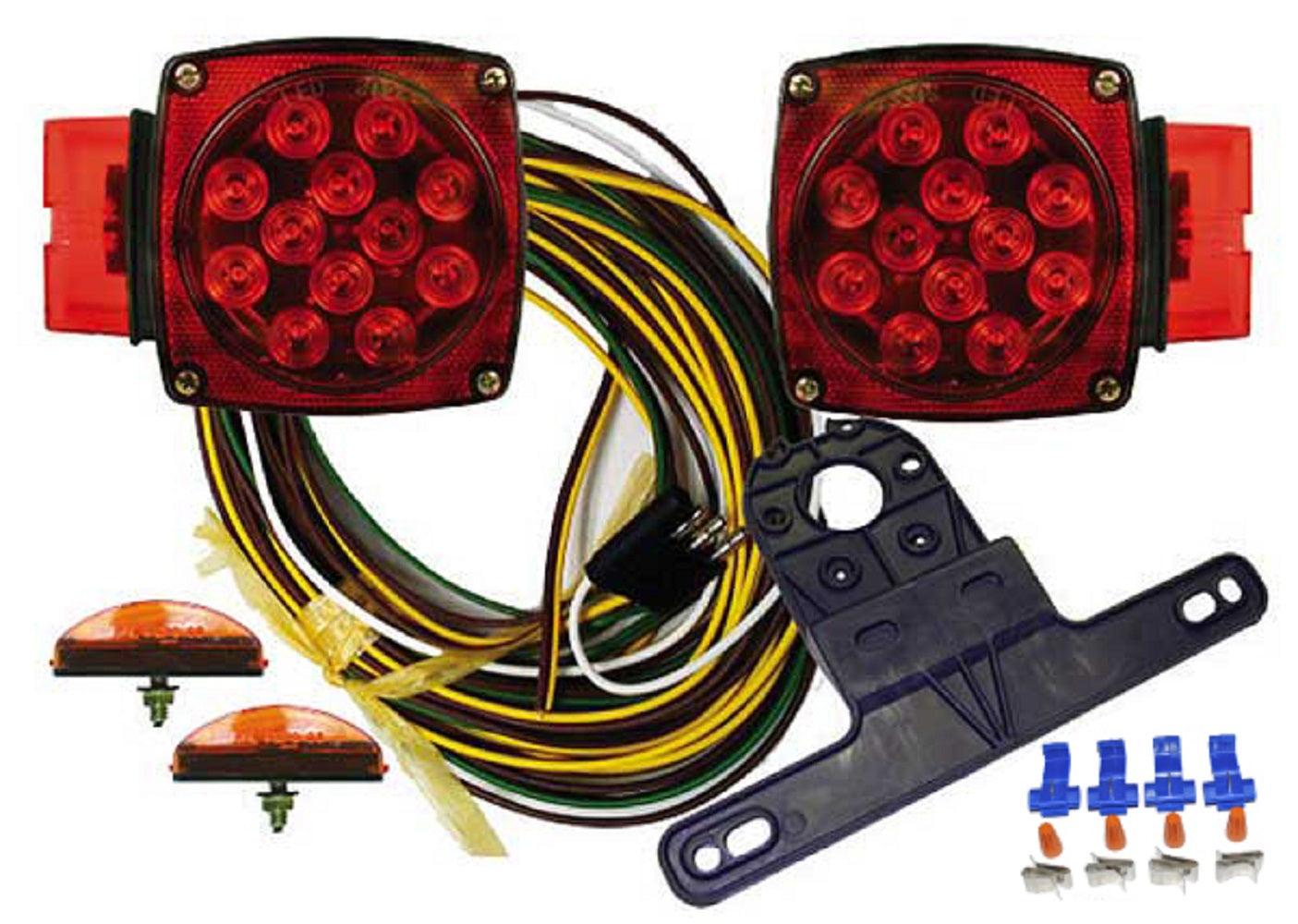

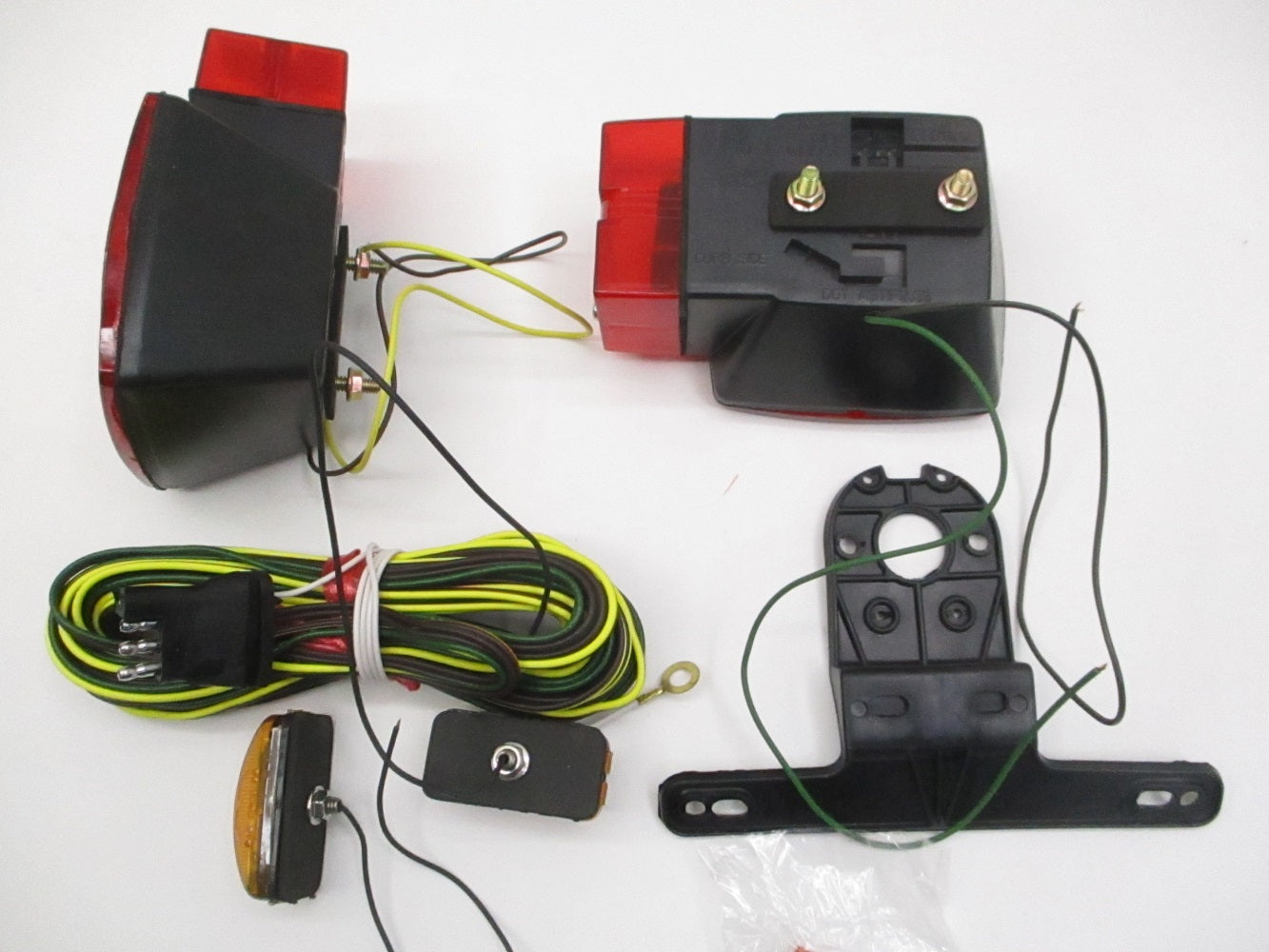

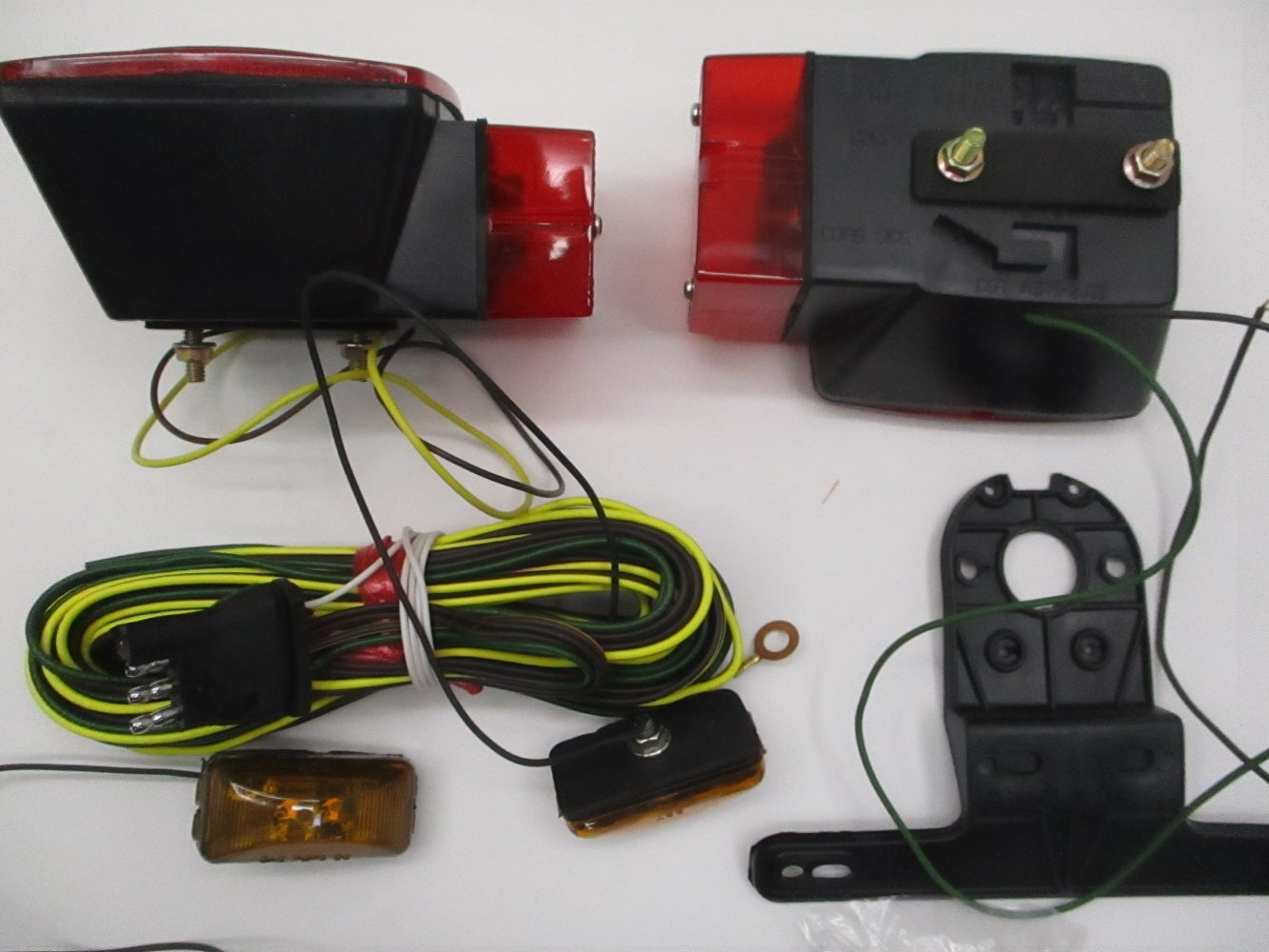

Kit Includes: LED Tail Lights with Red Side Marker, (2) Amber Marker Lights,
25' Trailer Wire Harness with 4-Way Flat Plug, Plastic License Plate Bracket,
Wire Connectors and Spring Clips.
LED Red Tail Lights are mounted with 2 studs approx. 2" center to center.
Tail Lights are Grounded through the mounting studs with two wire leads for Tail Lights
and then Brake/Turn Lights.
LED Amber Marker Lights are mounted with a single center stud.
Marker Lights are Grounded through the mounting stud with one hot lead wire.
